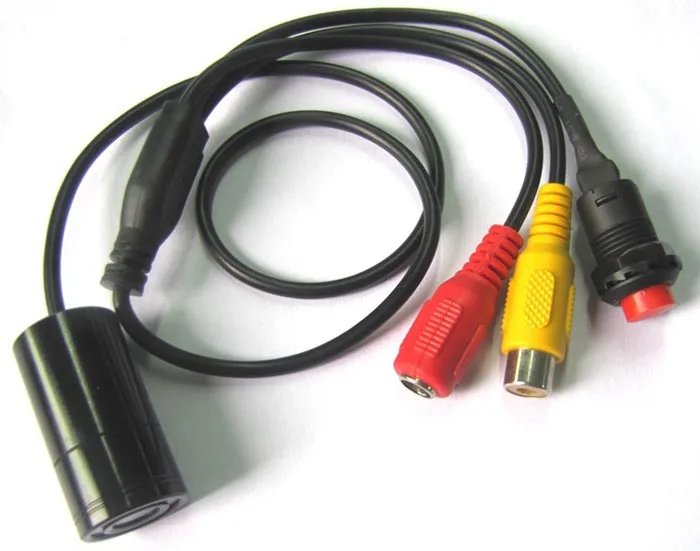

3rd Wired Waterproof Endoscope Camera IR Night Vision 5M Distance 90 Degree Lens 520TVL For Under Water Surveillance or Pipeline Dentistry Attentions :if you need the longer calbe ,please contact us ,we have IR940 AND IR850 two models for choices. Descriptions 1. 8 high light infrared lamps enable the effective night vision distance up to 5 meters; 2. High luminous flux (F1.2) and wide view angle (90°) mini lens; 3. diameter of cable default 5mm and length 0.5 meter, extend to max 50 meters 4. Small size and tiny light, suitable for underwater inspection 5. 520TVL Digital chip offers true color & HD video. Specifications PICK UP ELEMENT Single chip 1/3 CMOS SYSTEM NTSC NUMBER OF PIXEL NTSC：656（H）×492（V） SENSOR DIMENSION 4.75mm（H）×3.55mm（V） HORIZONTAL RESOLUTION Approximately 520TV Lines SENSITIVITY MCV8-IR940:0.00Lux/5m MCV8-IR850:0.00Lux/8m LENS & VIEW ANGLE 0.5mm F1.2 / 90 ° LED Control 1：Light（Default） 2：On-Off3：Self-Motion LIGHTS MCV8-IR940 8 IR940 MCV8-IR850 8 IR850 VIDEO OUT 1.0V p-p/75ohm LED Control OUT 1：AV（Default） 2：On-Off 3：Photosensitive Resistor WEIGHT 12g SIZE 18*32mm WORK CURRENT DC5V：70mA（Lamp Off）/185mA（Lamp On）；DC12V：35mA（Lamp Off）/ 85mA（Lamp On） POWER REQUIREMENT DC5-24V OPERATING TEMPERATURE – 10° C ~ +50°C ，less than 90% RH Connection PIN1àRed DC5V PIN2àBlack GND PIN3àYellow VIDEO OUT How to use it: 1) Power the camera by AC adapter 2) Connect camera with TV or other monitor to watch video. Connect DVR to record video. Packing list 1*underwater Camera 1*User Manual 1*Power Adapter
