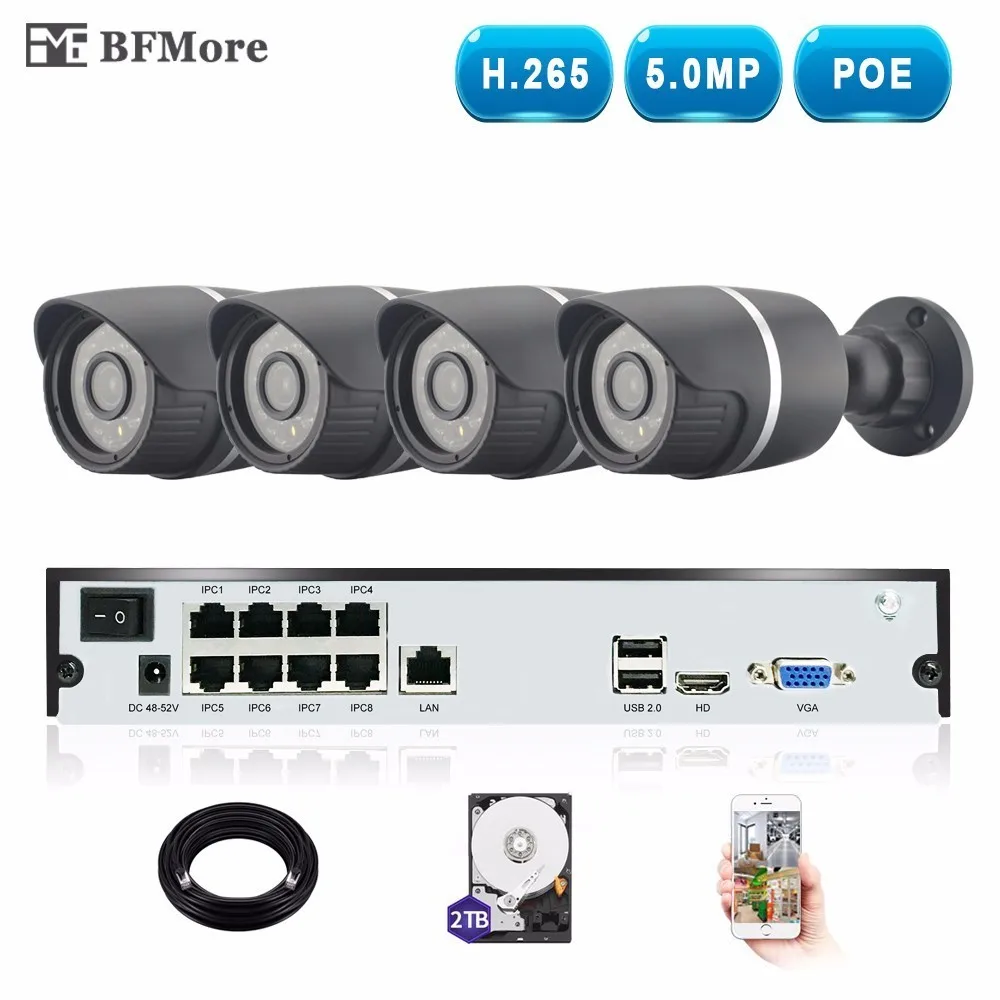

1. BFMore 8CH POE H.265 NVR * 1 (Customer could add more cameras in the future)
2. 5.0mp H.265 48V POE IP Camera* 4
3. Power adapter for NVR* 1
4. 20m Ethernet Cable* 4 (if longer cable required,please feel free to contact us)
5. Mouse * 1
6. User Manual CD *1
7. Screw package*1
(If choose HDD,We will help customer to install and test)
• 5.0MP POE Cameras Waterproof IP66 for outdoor/indoor use.
• UP to 16CH, the 8ch connect with POE IPC directly, the other 8ch come from switch
• H.265 main profile and baseline.
• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
• Motion Detection alarm can send alerts through e-mail or FTP.
• Support megapixel HD network video preview, storage and playback; • Support search, playback and backup by event; • Support all channel image display on one screen at same time • Offer CMS,Smart phone APP for free WHAT IS THE H.265? The Newer decoding mode. More Clear , HD resolution offer you best image quality in lower bit rate. Save more storage space,it can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.
IEEE802.3af Standard 48V POE
Easyer to install.
Plug and Play.
5.0MP UHD lens.
Make the Video clearer.
Details of the Lens
Focal Length: 3.6mm（Default） 6mm 8mm
Lens Angle: 79.9° 50° 38.5°
Suggested Distance: 0-5M 5-10M 10-20M
3.6mm Lens（Default）,if you need other Lens, please leave a message to us.
Whenever a danger is detected, the camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device.
Day and Night Guard
Infrared leds will autoly turn on when light is weak or completely dark to ensure high quality pictures.
Remote Viewing, Anytime, from Anywhere
No matter where you are, you can remotely access the camera to see live streaming and stay connected.
Remotely view the camera via: free AEeye App on your mobile device, free CMS Client on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.)
|Embedded LINUX operating system|
|Image Code Control||Image code quality adjustable, variable bitstream and constant bitstream optional|
|Dual Stream||Each channel can set main stream and sub stream|
|Video Standard||16ch 5MP/3MP/1080P/720P|
|Monitoring Image Quality||16ch 5MP/3MP/1080P/720P|
|Image Motion Detection||Each screen can set mutiple detection areas and set 6-level sensitivity（IPC Support）|
|Recording Playback Quality||5MP/3MP/1080P/720P|
|Video Capacity||NVR local recording playback support 4CH 2MP or 1CH 5MP (at same time)|
|Region Cover||Every channel can set 4 cover regions（IPC Support）|
|Recording Mode||Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)|
|Backup Way||Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup|
|Local Login||Username and password|
|Recording Storage||Local HDD, network|
|External Ports||Video Input||16ch 5MP/3MP/1080P/720P|
|Audio Input||16ch network audio input|
|Video Output||1ch VGA+1ch HDMI|
|Audio Output||1ch HDMI|
|Network Port||1 RJ45, 10/100M self-adaptive LAN port|
|USB Port||2 USB 2.0 ports|
|HDD & POE||HDD Port||1 SATA HDD Port|
|MAX Capacity||Each port supports MAX 8TB HDD|
|POE Port||8 10/100M Independent LAN port, data transferring and power supply both by network cable|
|Mobile Surveillance||Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone|
|Power Consumption||≤115W（without HDD）|
|Weight(without HDD)||N.W.：1.3Kg；With packing：2.4Kg|
|Installation Way||Desktop Installation|
|Processor||HI 3516D + 1/2.5″CMOS 5300|
|Lens||3.6mm (by default), 6mm, 8mm|
|IR Distance||30 meters (Depending on lens size)|
|Min. Illumination||0.1 Lux|
|Power Consumption||DC 12V 1A|
|5.0MP at most|
|Bit Rate||00k ~ 8Mbps|
|Frame Rate||20FPS @5MP, 20FPS @4MP, 30FPS @2MP|
|Interface||1x RJ45, 10/100M Self-adaptive|
|Network Protocol||RTSP/ P2P/ FTP/ PPPOE/DHCP/ DDNS/ NTP/ Upnp, etc.|
|Access Protocol||ONVIF 2.4|
|Motion detection||4x 3 Respective regions at most(NVR needs private protocol)|
|Alarm linkage||Alarm picture sent to E-mail Alarm pictures uploaded to FTP server|
|User management||Provide rights management. Support modify login user name and password.|
