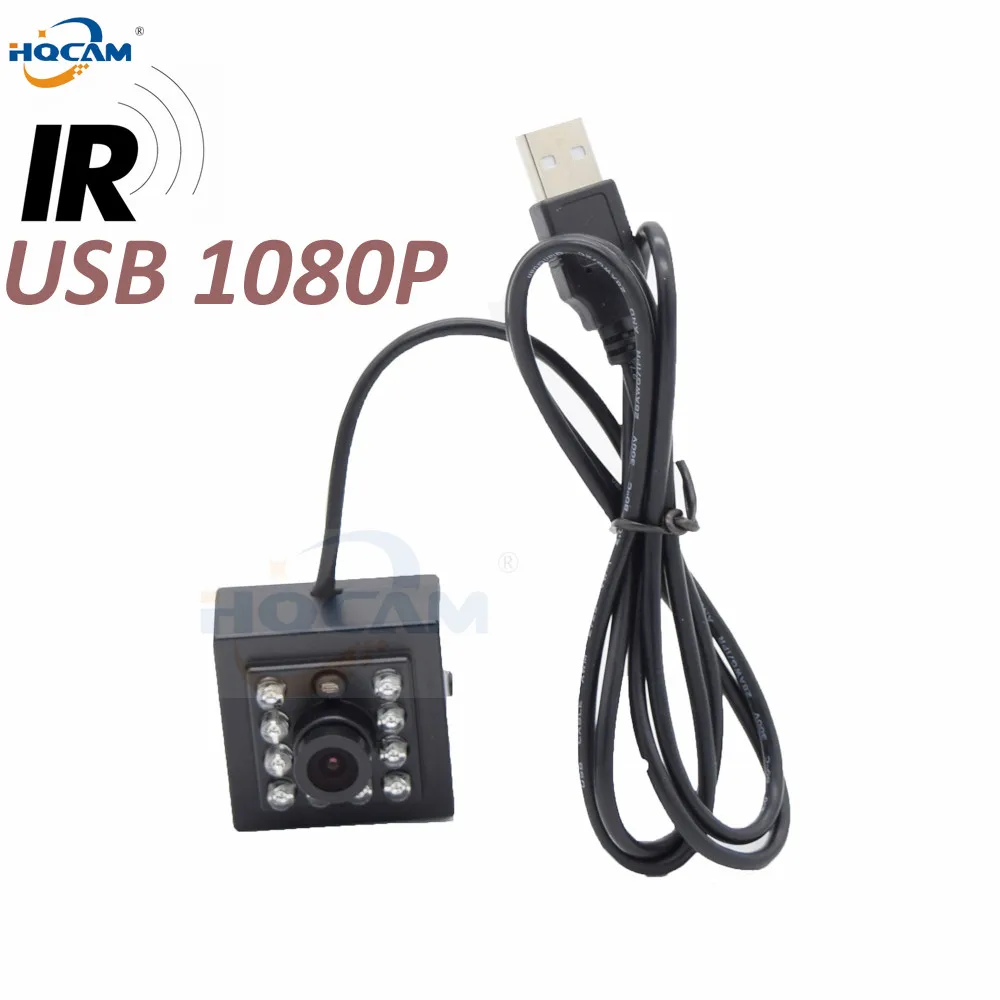

Specification Of the Camera:
10pcs IR LED
- *2.0MP USB Camera
*High Speed 1080P HD USB Camera
*Equiped with 3.6mm megapixel lens ( 6/8/12mm lens optional)
*High frame rate ,Can drive 30fps@1080P
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC. Free driver,plug and play
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera 5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner 9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition 12:video door phone 13:HD surveillance
USB Mini Camera,Popular used for various Industry Inspection,bank ATM machine, Medical Equipment etc.
|Sensor Size||1/2.7 inch|
|Pixel Size||3μm x 3μm|
|image area||5856 μm x 3276 μm|
|Max. Resolution||FULL HD 1920(H)X1080(V)|
|Compression format||MJPEG / YUV2 (YUYV)|
|Special function||Lens correction/ Defective pixel correction/ Black sun cancellation|
|Mini illumination||0. 05lux|
|Shutter Type||Electronic rolling shutter / Frame exposure|
|Resolution & frame||320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps|
|640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps|
|1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps|
|1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps|
|USB protocol||USB2.0 HS/FS|
|Connecting Port type||USB2.0 High Speed|
|OTG protocol||USB2.0 OTG|
|Free Drive Protocol||USB Video Class (UVC)|
|Adjustable parameters||Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,|
|White balance, Backlight Contrast, Exposure|
|Night vision||Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board|
|Power supply||USB BUS POWER 4P-2.0mm socket|
|Working current||0~60 centigrade|
|Cable||Standard 1M / optional 2M,3M,5M|
|Operating system request||WinXP/Vista/Win7/Win8|
|Linux with UVC(above linux-2.6.26)|
|MAC-OS X 10.4.8 or later|
|Wince with UVC|
|Android 4.0 or above with UVC|
Note: *Please select the PAL or NTSC Correctly according to your country
*The following section arrow can choose to place an order, please send to the seller confirm.
