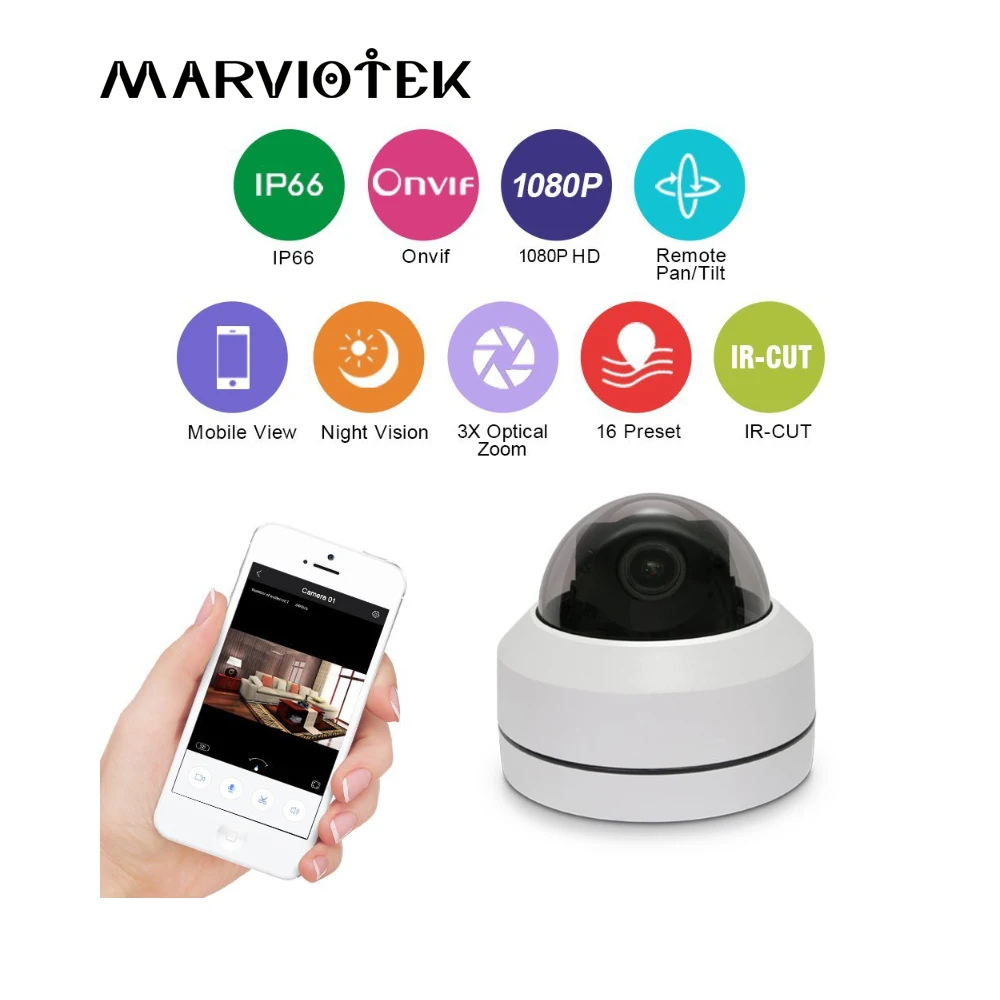

Specifications: 2.5″ Pan-Tilt-Zoom IP Camera, Pan Range: 0-355 °, Tilt Range 0-90°. Remote Pan/Tilt Functionality with 3x Optical Zoom, IR night vision 20meters. Premium HD 1080p Video Resolution, 2.8-8mm 3X Motorized Zoom Lens. H.264 Video Compression. Perfect ceiling install for both indoor and outdoor places (come with a metal base plate). Built-in Surge and Lightning Protection Devices, Working temperature: -20℃~+60℃ 6 presets;1 patrol;1 pattern;support AB scan; IP66 waterproof , anti-explosion glass and Aluminum cover that can be used in harsh environment. |
||
CAMERA | Sensor Image | 1/2.7″ 2.0 Megapixel CMOS Sensor |
EFFECTIVE PIXEL | 1920×1080 | |
SCANNING SYSTEM | Progressive Scan | |
SYNCHRONIZATION | Internal | |
ELECTRONIC SHUTTER | 1/25s~1/50,000s , 1/30s~1/60,000s | |
TV SYSTEM | PAL/NTSC | |
Video Frame Rate | 25fps/30fps at1080P | |
MIN. ILLUMINATION | 0.01Lux atF1.2(AGC ON), 0Lux IR on | |
VIDEO OUTPUT | RJ45 | |
IR LED | IR LED: 42μ x 2pcs, IR Range: 20M | |
PAN&TILT | PAN RANGE | 0°~350°, Horizontal |
PAN SPEED | 120°/s | |
TILT RANGE | 0°~90°, Vertifcal | |
TILT SPEED | 45°/s | |
QUANTITIES OF PRESETS | 255 | |
PTZ PROTOCOL | PELCO-D/PELCO-P | |
BAUD RATE | 2400/4800/9600/19200/38400 | |
SCANNING MODE | Auto Pan/Pattern/Auto Tour | |
LENS | PIXEL | 2MP |
IMAGE FORMAT | 1/2.7″ | |
FOCAL LENGTH | 2.8-8MM | |
APERTURE | F1.4 | |
MOUNT | M12 | |
FIELD ANGLE(D×H×V) | 1/2.7″: 136°×108.8°×81.6°~ 49.5°×39.6°×29.7° | |
IRIS | Fixed | |
ZOOM | Motorized | |
FOCUS | Auto Pan/Pattern/Auto Tour | |
FEATURE | SENSE-UP | OFF/ON |
DWDR | OFF/ON | |
DEFOG | OFF/ON | |
BACKLIGHT COMPENSATION | OFF/BLC/HSBLC | |
WHITE BALANCE | ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB | |
DAY&NIGHT | EXT/AUTO/COLOR/B/W | |
NOISE REDUCTION | 2D NR/3D NR | |
CAMERA TITLE | OFF/ON | |
MOTION DETECTION | OFF/ON | |
PRIVACY MASK | OFF/ON | |
OSD LANGUAGE | EN/CN/ | |
INGRESS PROTECTION | IP66 | |
GENERAL | POWER SUPPLY | DC12V±10% POE Optional |
POWER CONSUMPTION | Max 5W | |
WORKING ENVIRONMENT | -10°C~+50°C / Less than 95%RH (no condensation). | |
DIMENSION | ¢105mm x 69mm(H). | |
WEIGHT | 450g. |
Product packaging
1 * Mini PTZ Dome Camera 3 * Screws 1 * Metal Base Plate (Note : PoE is optional )
FAQ:
Q: Does it support web browser ?
A: Yes
Q: Does this camera support ONVIF ?
A: Yes , it support ONVIF, it can work with DVR/NVR
Q: Does this camera can be used outdoor ?
A: Yes , it is waterproof camera, can be applied in harsh envirnment like rainy days and snow days
Q: Does this camera support two way audio ?
A: No, it does not support audio input and output
1080P IP Camera outdoor ip66 video surveillance 3X optical zoom ptz camera mini ip cameras 2mp cctv ip camera POE TF card option
