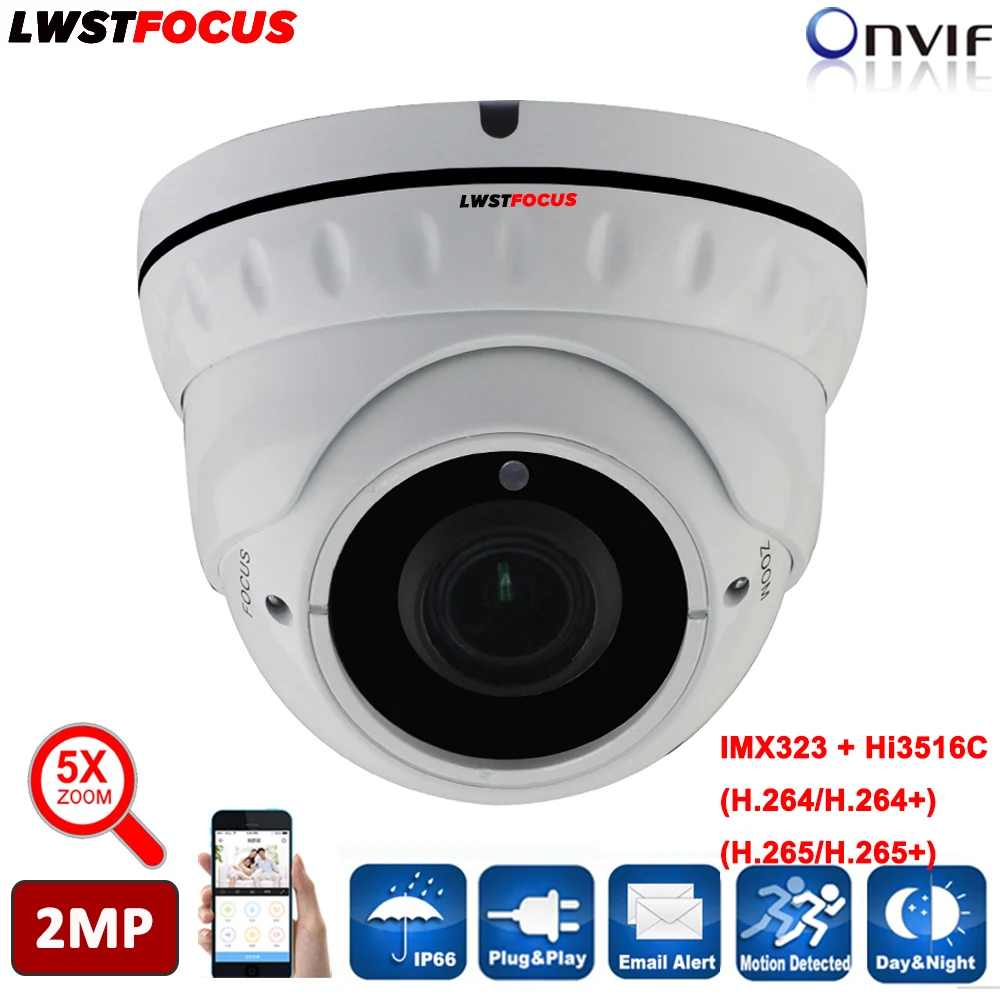

LWSTFOCUS H.265/264 HI3516C+SONY IMX323 Full HD 1080P IP Camera 5X Zoom Auto Focus 2.7-13.5mm 2MP Outdoor Dome IR Onvif FREEIP
POE Optional: Power Over Ethernet 10/100mbps IEEE802.3af for IP camera,12V 15.4W Support 10/100M.
Highly comptiable with Hikvision, XM,Dahua, add LWSTFOCUS, Hikivision, XM private protocal already, support ONVIF, ONVIF2.4 protocal.
Notice : 48V PoE Version Has add PoE Module, Which Can Work With DC 12V Power Supply & 48V PoE Switch/Injector ( Power Supply and POE Switch NOT Included )
1/2.8″ SONY Starvis Back-illuminated CMOS Sensor1/2.8″ SONY Starvis Back-illuminated CMOS Sensor
HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens
1/2.8″ SONY Starvis Back-illuminated CMOS Sensor
HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens
1/2.8″ SONY Starvis Back-illuminated CMOS Sensor1/2.8″ SONY Starvis Back-illuminated CMOS Sensor1/2.8″ SONY Starvis Back-illuminated CMOS Sensor1/2.8″ SONY Starvis Back-illuminated CMOS Sensor1/2.8″ SONY Starvis Back-illuminated CMO
HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CU2.7-13.5mm Motor Zoom Auto Focus Lens Weatherproof IR Dome Camera 1/2.8″ SONY Starvis Back-illuminated CMOS Sensor HISILICON Hi3516C, WDR; External POE +5 Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens Water resistance: IP66 NEW IR LED: 14μ x 24PCS IR Range: 30m 2.8-12mm Manual Zoom Lens Size: 131 x 93(H)mm Weight: 800g 1/2.9″ SONY Low Illumination CMOS Sensor HISILICON Hi3516C, WDR; External POE optional Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT 2.7-13.5mm Motor Zoom Auto Focus Lens Main Features 1.Supports H.264,H.264+ & H.265,H.265+,corridor mode and defogging mode; 2.Support audio function and reset function;(If need add Audio function, please kindly contact seller) 3.IR-CUT interface supports automatically filter switching between day and night; 4.Standar size 38*38 for modular design structure and can fit most housings; 5.The maximum resolution is 1920 x 1080 with high-image quality;
1.With Screen Capture command
2.Motion Detection Alarm (range18 * 22) FTP(FPEG&AVI, SMTP, JPEG&MESSAGE&AVI;
3.Timing: Manually, PC synchronization, network synchronization (nist\windows\nw.nist\a.nist\b.nist);
4.Privacy zone block (8 * 8), 3 groups can be supported;
5.Brightness \ Contrast \ saturation \ Sharpness adjustment \ White Balance: Auto & Manual \ 3D NR(adjustment range 1-255);
6.BLC(off by default), ISO mode (normal \ Enhanced – default), WDR (off by default), AE (automatic default, manually adjustment range 1-255)
7.Electronic Shutter(off by default, manually adjustment range1/25 – 1/10000s);
8.PAL\NTSC optional and default as PAL;
9. Support DDNS and DDNS types as Oray,NO-IP,DYN DDNS;
10. Safe: Passowrd is required when connect third-party software or device (such as a type of VLC player RTSP);
11. Support audio which need add mic, off by default;
12. User Management(add,delete,configurate competence), 10 group at most;
13. DHCP(default as off), support unified Port for HTTP\RTSP\ONVIF(default as 80);
14. P2P(FREEIP), support login ways as SN\IOS APP\Android APP\QR code scanning, and support connection status display;
15. Dual stream output default main stream as 2.0MP-1920*1080P&sub-stream as D1-720*480, Stream adjustment Frame rate, bit rate, VBR \ CBR variable bit rate, frame interval),OSD menu(time + text, 2 lines);
16. Support OCX manual recording, manual shots, power outages memory support, built-in & external reset button
Packing content 1*IP camera Screws bag 1*CD(Softwares and User Guide) 1*Quik Operation Guide
IP camera will support Firefox(lower than 52), Safari, Chrome(lower than version 45), IE8-IE11 in Windows system and Mac OCX.
|Electronic Shutter Time||Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec|
|Infrared LED||14µ X 24PCS|
|IR Status||Under 10 Lux By CDS|
|IR Power On||CDS Auto Control|
|Protocol||TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP|
|ONVIF||Support ONVIF 2.4|
|P2P||YES, Support QR Code|
|POE||Optional, Support IEEE 802.3af|
|Video Delay||0.3S (Within the Lan)|
|Main Stream 1||1920*1080@30fps|
|Main Stream 2||/|
|Main Stream 3||/|
|Sub Stream 1||720*480@30fps|
|Sub Stream 2||/|
|Sub Stream 3||/|
|IE Brower||IE8-11, Google Chrome, Firefox, Safari, Mac Safari|
|Smart Phone||iPhone, iPad, Android, Android Pad|
|Day/Night||Color/ B&W (IR-CUT )|
|Image Config||Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)|
|Privacy Masking||3 Rectangular Zone|
|Language||Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands|
|IR Cut Filter||YES|
|Operation Temperature||-20℃ ~ +60℃ RH95% Max|
|Storage Temperature||-20℃ ~ +60℃ RH95% Max|
|Power Source||DC12V±10%, 700mA|
