What is AHD?
AHD (Analog High Definition) is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).
In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.

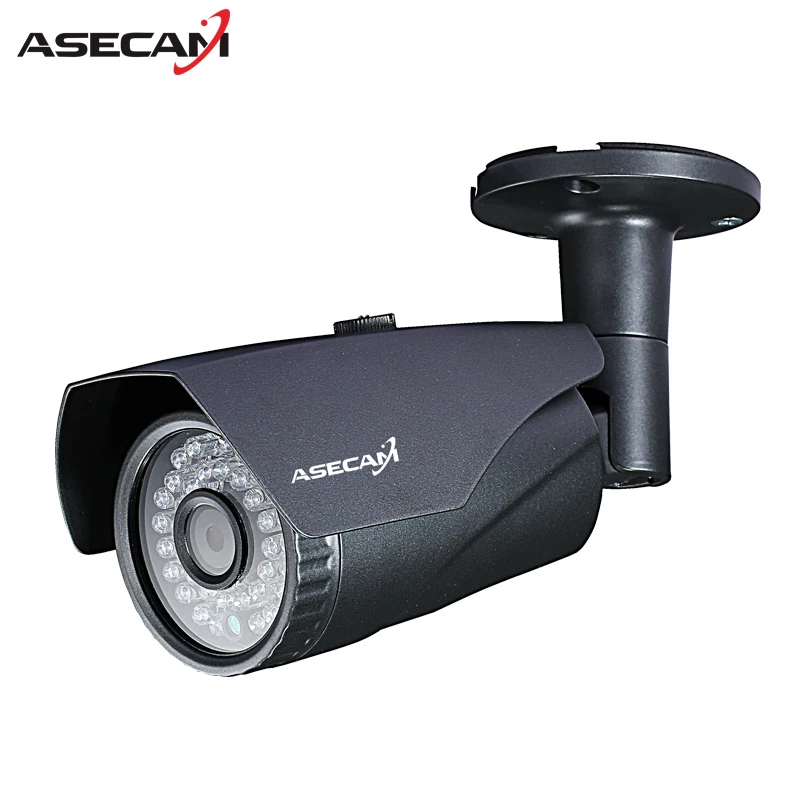

Adopt Latest Suer 4MP 1/3″CMOS(OV4689+NVP2475H),high performance NVP2475H DSP, Reach to 4MP HD Resolution
By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;
Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not partial color distortion;
Analog HD 4MP#AHD video output;
The transmission distance is 500 meters;
Support automatic electronic shutter function, adapt to different monitoring environment;
Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;
Easy installation & operation, as same as analog CCTV system
More acceptable, lower price than analog surveilance system
NO Delay, Real time Display
|Resolution||Spuer HD 4MP 26881520|
|Image Sensor||1/3″ Sony OV4689|
PAL : 26881520#25fps
|Video Standard||Follow AHD and CVBS Standard|
|Video Output||1CH AHD HD/CVBS Standard Singal Output(Switchable)|
|Max Transmission Distance||Common 75-3 Cable can be up to 500m|
|HD 3MP Lens size||4mm/6mm/8mm Default:6mm (If need to replace other lens,Please give me a message in order )|
|Minimum Illumination||0.001LUX/F1.2(Led on)|
|LED||36PCS IR LEDS|
|IR Distance||20-50 Meter|
|White Balance||Auto White Balance|
1>>This is Super AHD 4MP Camera ,Work Must use 4MP Recording Format AHD DVR , If NO USE 4MP Record AHD DVR, 4MP AHD Camera Not Work .
2>>You Can’t use “AHD-H System 1080P”,”1080N System” and “720P AHD-M System” Record AHD DVR or Common DVR ,the 4MP AHD Camera it Not Work!!!
3>>4MP AHD Camera Work Can only use 4MP or 5MP Record AHD DVR!!!
If you need 4MP Record AHD DVR, please Click buy the follow one:
AHD Camera Work Connection Diagram:
