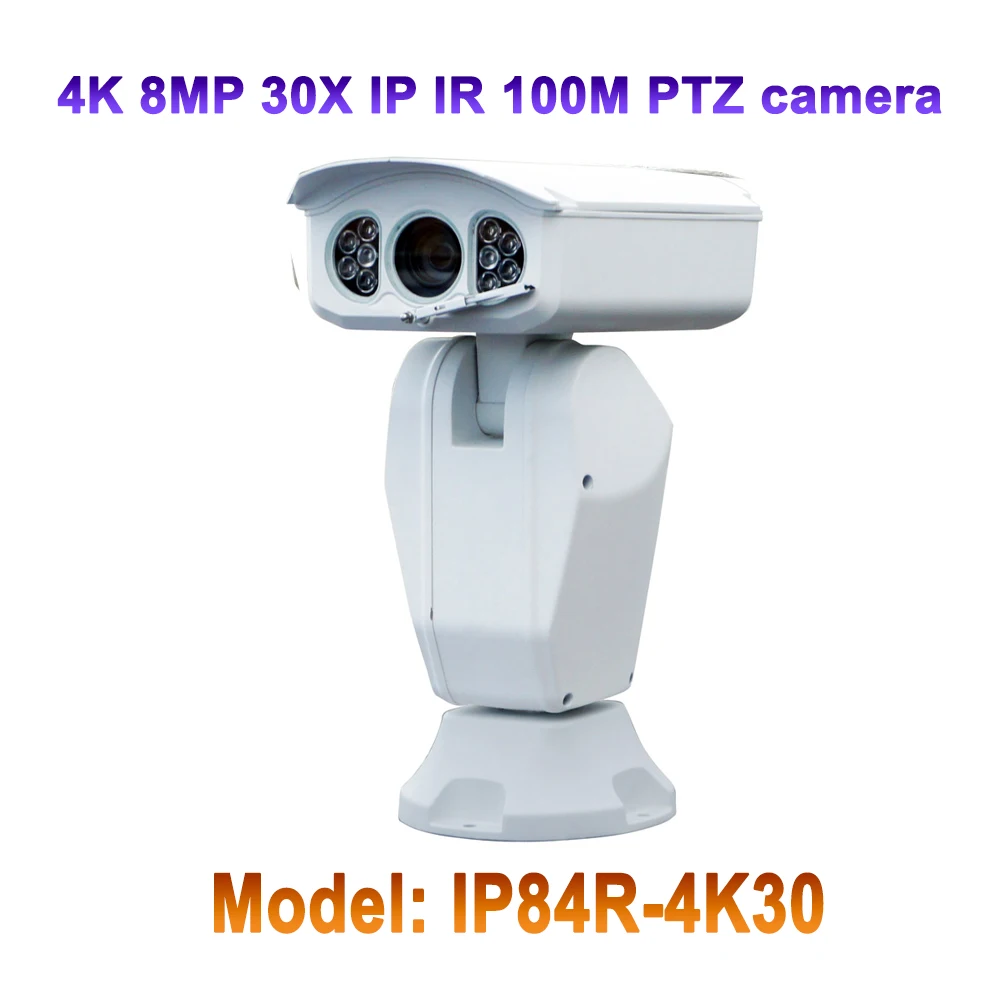

Sony Sensor 4K 8MP IR 100m HD IP PTZ Camera CCTV 30X Auto Zoom Indoor Outdoor Weatherproof IP66 Security Surveillance

80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $2094.50 / piece
Sale Price:  US $1591.82 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Sony Sensor 4K 8MP IR 100m HD IP PTZ Camera CCTV 30X Auto Zoom Indoor Outdoor Weatherproof IP66 Security Surveillance

Main Features:

Sony 1/2.5″CMOS, 8.51M Pixels, Optical 30X Zoom, 3840×2160/P30, SSNR

Day/Night 0.004/0.0004Lux, f=6.0-180mm.

Night-vision distance 100-120M,light angle proportionable camera view

Integrated IP Encoder, Hi3516 HD 1080/P30/P60, H.265, SD storage, RTSP, VLC protocol

Two-way Audio In/Out, CMS.

HD IP version, Basic PT configuration

Aluminum shell; pan 360°tilt -90~40°, pan speed 0.2-80°/s, tilt speed 0.2-40°/s;accuracy ±0.025°. OSD menu

Support 3 grades lightning-proof, alarm function, internal temperature display and etc.

support Pelco-P/D and other kinds of protocols etc.

Technical Parameter:

Model: IP84R-4K30
Camera module
Sensor Diagonal 7.20 mm ,Sony 1/2.5 CMOS 8.51 Pixel Color CMOS Image Sensor
effective pixels 8.51M pixels
Aspect ratio 16:9 (4K 3840×2160)
Visual lens HD 30X Zoom Lens
Focal length (mm) 6~180mm
Zoom value 30X
effective pixels 4K
Iris F1.64~4.6
Wide View of angle (WxH) 59°
Tele View of angle (WxH) 2.4°
Infrared confocal Yes
Auto-focus Yes
Back focal length (mm) 1
Minimum object distance (m) 0.1m(Wide) ~ 1m(Tele)
Pan Tilt Parameter
Rotation Range Pan 360°continuously; Tilt 125°(-85°~+40°)
Pan Speed 0.2°~80°/S
Tilt Speed 0.2°~40°/S
Preset Speed Pan 80°/S, Tilt 40°/S
3D Location /
Zoom/Speed Proportion Auto-speed proportionate to the length of focus
Position Accuracy ±0.025°
Preset 128, titles can be edited
Auto Flip Tilt down to 85°, camera will auto run auto flip 180°
Auto Scan 355°programmable, 4 scan
Patterned Scan 4, each record time is not less than 180S
Display Zone 8 with titles, (support automatic scanning in zone)
Baud rate(Rs485) 2400/4800/9600/19200bps
ID Range 1~254
Alarm Support
Decoder Build-in
Power loss recovery Support
PTZ position display ON/OFF
Preset video freeze Support (need camera module support)
OSD Support
Temperature display Survey the temperature inside of the PTZ
Park action Preset/Pattern/Tour/Auto Scan
Timing task Preset/Pattern/Tour/Auto Scan
Remote Controlling RS485/422,Manchester, BI-PHASE,RJ45
IP Parameter
IP Encoder High Definition-IP
Video Compression H.264/H.265,Baseline/Main Profile/High Profile;H.265 Main Profile; MJPEG
Main Stream 1920*1080, 1-60(default 30)frame/S; 1280*720, 1-60(default 30)frame/S;
Sub Stream D1, 1-25 (30)frame/S; 640*480, 1-25 (30)frame/S; 320*240, 1-25 (30)frame/S
Video Bitrate 30~16384Kb/S continuously adjustable, CBR/VBR support
Information Display Dome Title, Preset, Pattern, Scan, Zone, Zoom, Alarm, Date/Time
Data Storage TFCard Support,up to 128GB
Storage Mechanism Manual,Auto(Loop,Timing,Alarm,Motion Detection)
Alarm In IO Detection,Motion Detection
Alarm Out E-mail,FTP,ONVIF,GPIO
Internet Protocol TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DHCP, FTP, NTP, SMTP
ONVIF support Standard ONVIF2.4
GB28281 JVT
Private protocol Hikvision (JVT)
Web browser IE6.0 or Later,Support 10 users access simultaneously(MAX)
NVR support HIKVISION, DAHUA, TVT, XM technology and etc.
Platform support Milestone, NUUO, AXXON, Digifort Avigilon, Aimetis
SDK support Windows&Linux
P2P support TUTK,danale,Ichanoo(JVT)
General
IR View Range 100-120M
Electrical Protection grade Built-in TVS4000V,lightning-proof,surge-proof and wave-proof
Woking temperature & humidity -30℃~+55℃;0~95°(non-condensation)
Ingress Protection IP 66
Power consumption Neutral product consumption≤40W;
With extra freezing-proof consumption≤100W
Rate Votage AC24V
Dimensions 330mmx197mmx436mm
Horizontal Turning redius 245mm
Net Weight 7.2 Kg
Gross Weight 8.7kg
Installation type Up
Packed Dimension 52x43x26CM

Product Size:

Product Photo:
