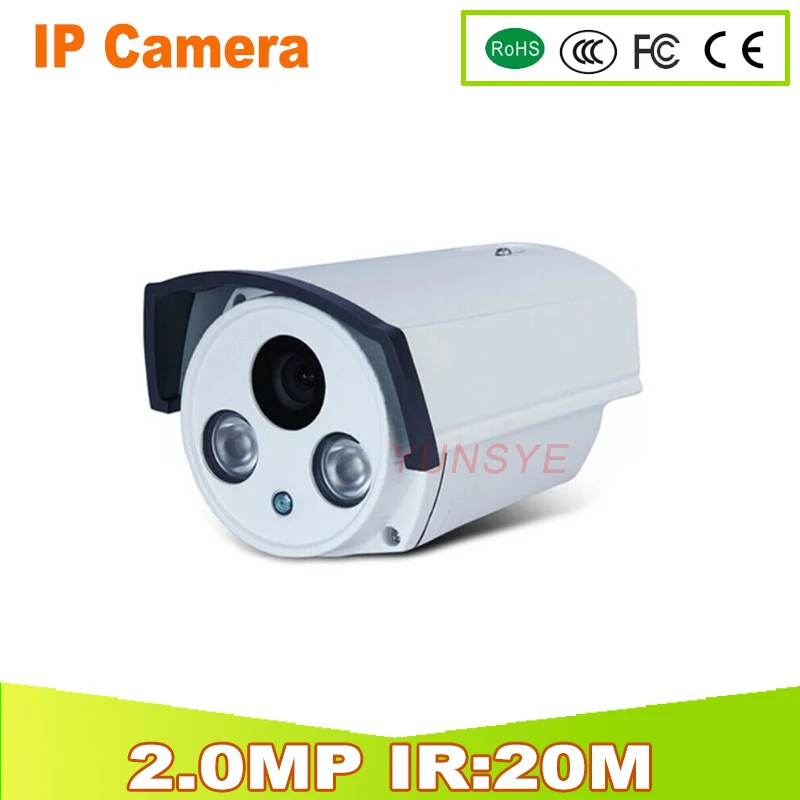

Camera |
|
Image Sensor |
1/2.8 CMOS |
Main processor |
Hi3516C |
Resolution |
1080P |
Effective Pixels |
1920(H)*1080(V) |
TV System |
PAL/NTSC |
Electronic Shutter Time |
Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec |
S/N Ratio |
≥52dB |
Scanning System |
Progressive |
Video Output |
Network |
Lens |
|
Focus Length |
3.6-12MM Optional Standard 4MM |
Focus Control |
Manual |
Lens Type |
Manual |
Pixels |
2M Pixels |
Night Vision |
|
Infrared LED |
2PCS , |
Infrared Distance |
20M |
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS |
ONVIF |
Support ONVIF 2.4 |
P2P |
YES |
POE |
Customizable |
Video Delay |
0.3S (Within the Lan) |
Main Stream |
1920*1080@30fps |
Sub Stream |
720*480@30fps |
IE Brower |
IE6-11, Google Chrome(IE Tab), Firefox(IE Tab) |
Smart Phone |
iPhone, iPad, Android, Android Pad |
Camera Features |
|
Day/Night |
Color/ B&W (IR-CUT ) |
Compression |
H.264/JPEG/AVI |
Motion Detection |
Support |
Recording Mode |
NVR/NAS/CMS/Web |
Language |
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian |
General |
|
Housing |
Metal , IP66 |
Anti-cut Bracket |
YES, Anti-Cut Bracket |
IR Cut Filter |
YES |
Operation Temperature |
-10 ~ +50 RH95% Max |
Storage Temperature |
-20 ~ +60 RH95% Max |
Power Source |
DC12V±10%,700mA |
Dimension |
291(W) x 91(H) x 87(D)mm |
Weight |
1kgs |
